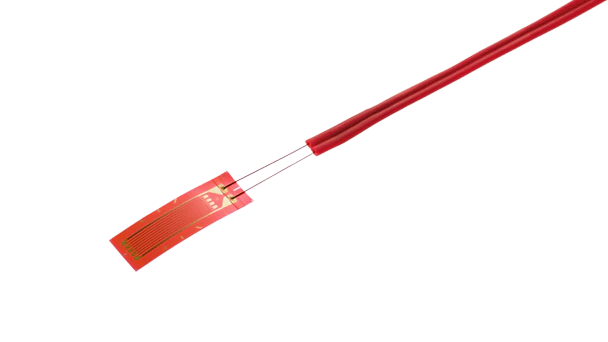

Strain gages are sensors that detect slight mechanical dimension changes (strain) as electrical signals. Kyowa manufactures strain gages suitable for a wide variety of measurement environments, including environments from high to extremely low temperatures, and environments underwater or in hydrogen gas.

Search products

View details in the Digital book

Types of Strain Gages

There are several types of strain gages, such as foil strain gages, wire strain gages, and semiconductor strain gages. Features vary by type, and certain strain gages are best used for specific measuring targets and in certain environments.

Kyowa's Typical General-purpose Foil Strain Gages – KFGS Series

Kyowa's typical strain gages are KFGS series. Each strain gage in KFGS series features an outstanding moisture resistance and exhibits the power in field measurement too. Unless any waterdrop is splashed on it, no coating is required. Thus, KFGS strain gages can be used for various purposes.

Strain Gages Suitable for Individual Purposes and Environmental Conditions

According to customers’ needs, KYOWA has developed various strain gages. Introduced below are typical ones.

Typical Strain Gages designed with environmental conditions taken into consideration

Measurement at down to −269°C

KFLB

Measurement at up to 650°C

KHCM

Measurement under hydrogen gas environment

KFV

Typical Strain Gages with measuring purposes taken into consideration

Measurement of material deformation by 20 to 30%

KFEM

Measurement of bolt axial tension

KFB

Measurement of progress of crack

Typical Strain Gages with target materials taken into consideration

For concrete

For composite materials

KFRPB

For printed boards

KFRS

KYOWA provides many other strain gages for a variety of applications. Check them by clicking Search Strain Gages

Search Strain Gages.

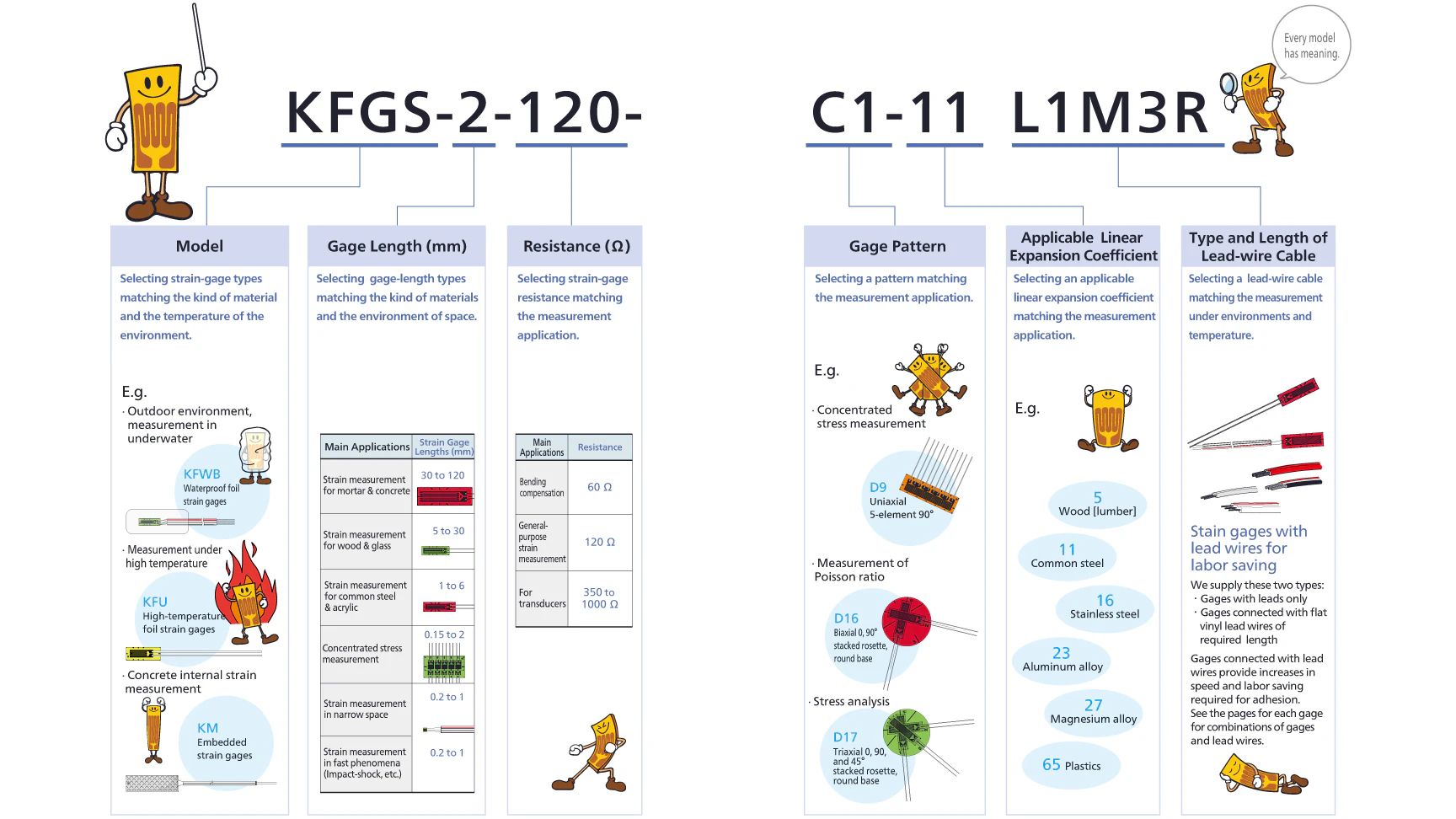

Strain-gage Model Name Coding System

*We also manufacture strain gages according to the customer's measurement purpose. *Combination of codes is limited and impossible to choose menu options at random.

To Ensure Safe Usage

Important Notice

The strain gages on this catalog cannot be used in hydrogen environments, except for products indicated for use in hydrogen gas environments.
