Load cells

The BL-B series is a hollowed load cell. It is developed to accurately measure the loads applied to earth anchors, PC anchors and the supports of tunnel arches. Rated Capacity: 5 kN to 500 kN Diameter: 98 mm (5 kN to 50 kN), 129 mm (100 kN), 90 mm (200 kN), 115 mm (500 kN) Nonlinearity: Within ±1% RO (5 kN to 100 kN), within ±2% RO (200 kN), within ±0.6% RO (500 kN)

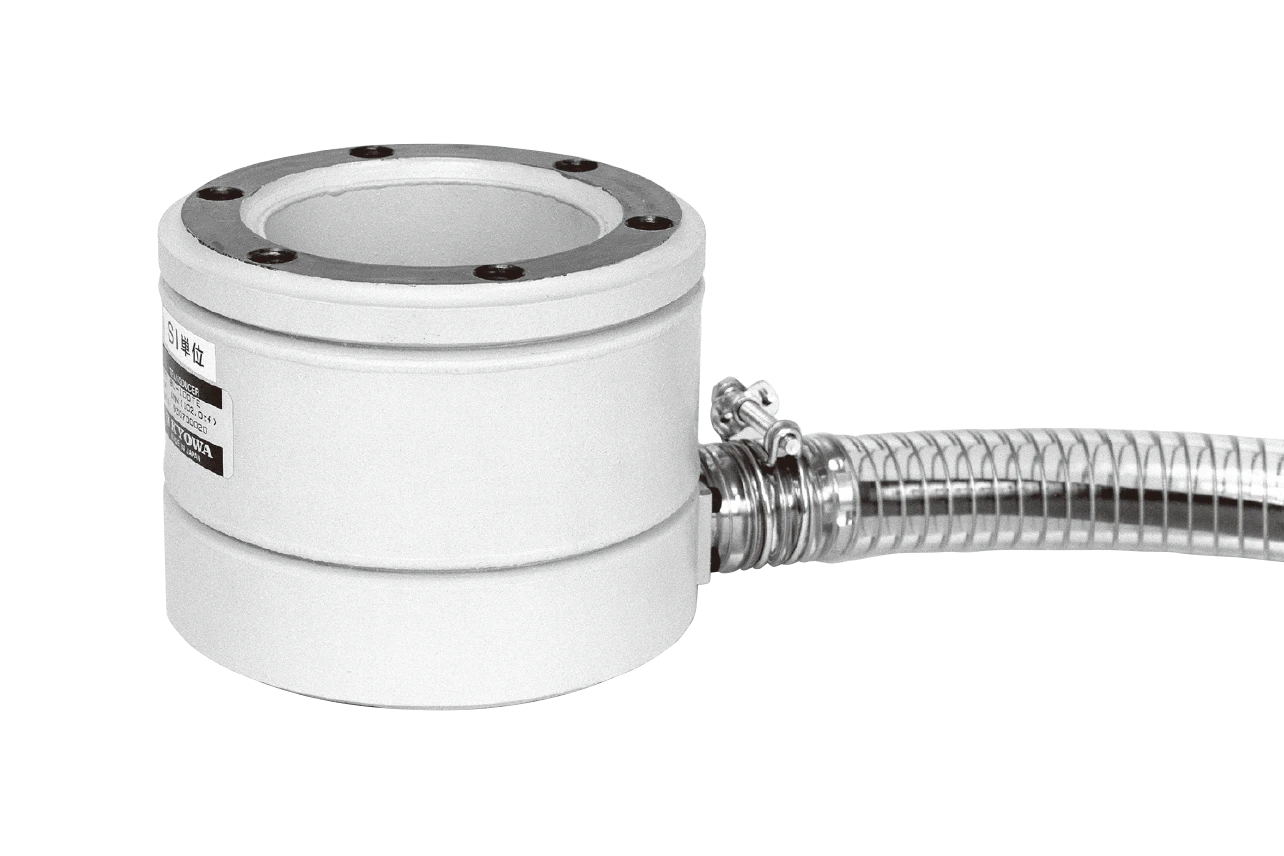

The BL-E is a hollowed load cell for measuring large loads applied to earth anchors, PC anchors and supports of tunnel arches. Rated Capacity: 1 MN, 2 MN Diameter: 140 mm (1 MN), 210 mm (2 MN) Nonlinearity: Within ±0.5% RO (1 MN), within ±1.5% RO (2 MN)

The BLD-A-S series is compact and lightweight hollowed load cells designed to accurately measure the load applied to a PC anchor and rock bolt. To endure field applications, these transducers feature a waterproof design and high accuracy. Rated Capacity: 50 kN to 500 kN Diameter: 50 mm (50 kN), 61 mm (100 kN, 200 kN), 64 mm (500 kN) Nonlinearity: Within ±1% RO

The BLW-A is a hollowed load cell for measuring loads of VSL anchors, etc. Rated Capacity: 500 kN to 2 MN Diameter: 188 mm (500 kN), 223.5 mm (1 MN), 263.5 mm (1500 kN, 2 MN) Nonlinearity: Within ±0.8% RO

It can be used to measure loads of ground anchors, PC anchors, tunnel timbering, etc. either existed or new one. Rated Capacity: 500 kN, 1 MN Diameter: 158 mm (500 kN), 193 mm (1 MN) Nonlinearity: Within ±1% RO
