Strain Gages with Pre-attached Lead-wire Cables
Most KYOWA strain gages come with lead wires attached. Using these types of gages eliminates the need for soldering and is an effective means of reducing the amount of work required for gage attachment. The lead wire type and length vary by gage, as shown below.

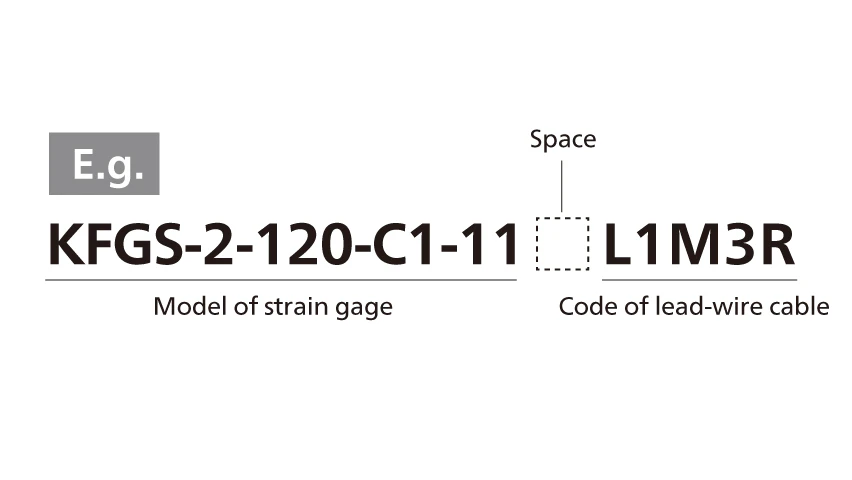

Lineup
Examples of vinyl-coated flat wire to connect gages
Connecting section of lead wires

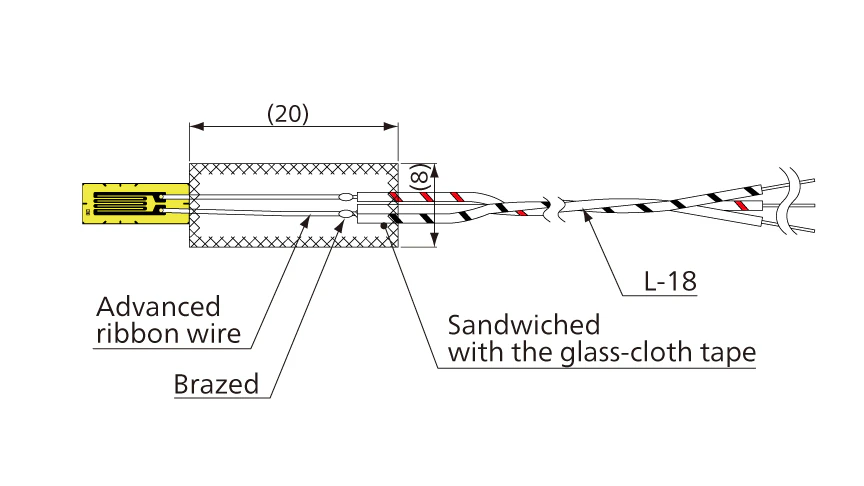

The gage lead section of some types is sandwiched or wrapped with the glass-cloth tape for insulation and reinforcement. (See the figures below.)
Type A (Strain gage with fluoroplastic-coated high/low-temperature 3-wire cable)
For KFHB
*The above picture is KFHB-5-120-C1-11
Type E (Strain gage with high-temperature 3-wire cable)
For KFU
Type F (Strain gage with fluoroplastic-coated high/low-temp. 3-wire cable)
For KFHB, KFRPB
*The above picture is KFRPB-5-120-C1.
*1 KFHB: Advance ribbon cables
For KFLB
*The above picture is KFLB-5-120-C1-11.
*Polyester-coated copper wire operating temp. -196 to 150°C
Type R (Strain gage with mid-temperature 3-wire cable)
For KFGS, KFRB, KFRPB, KFRS, KFLB
*The above picture is KFGS-5-120-C1-11.
