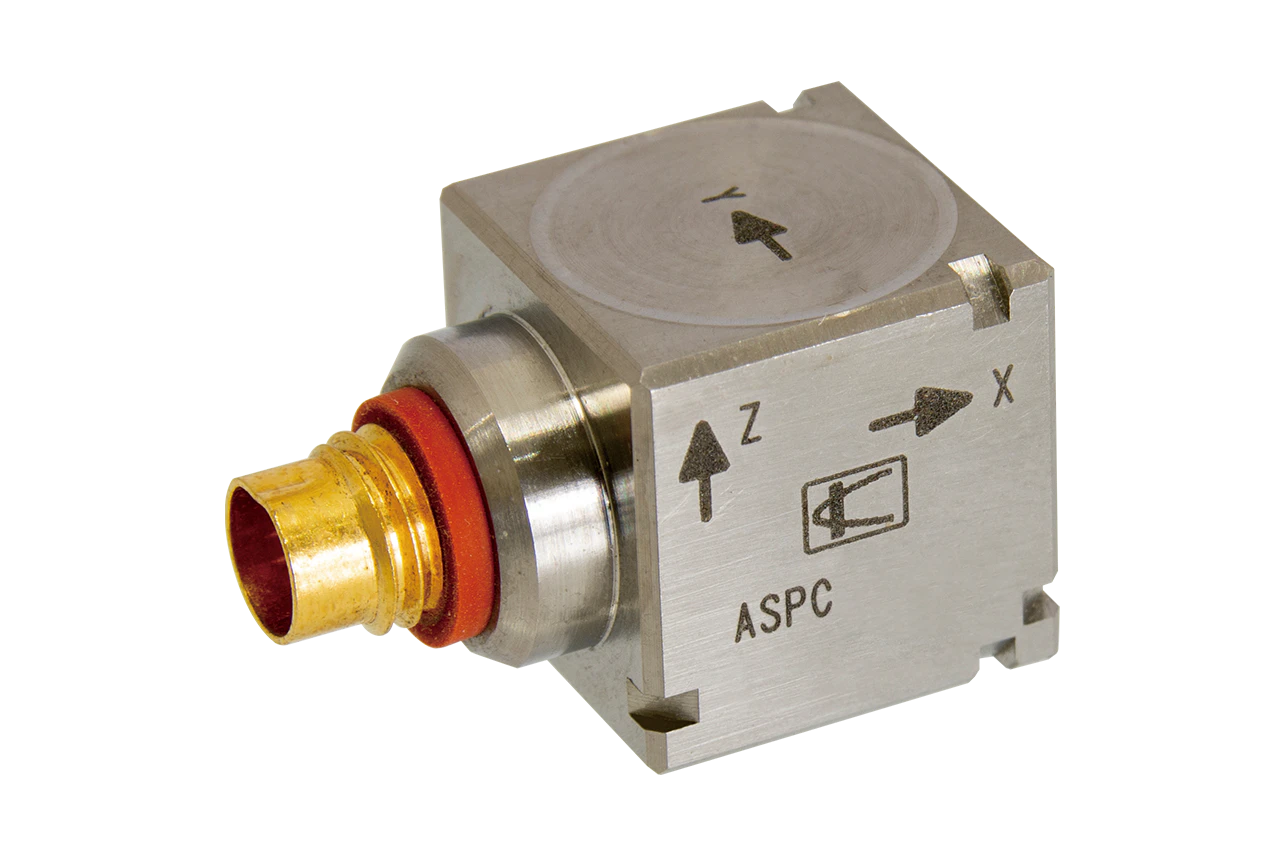

ASPC-A
Piezoelectric Acceleration Transducer (Built-in Amplifier)
![](https://images.microcms-assets.io/assets/f76ce1c9d600493d9aabe1847913815c/be6435558f9e4de5a1d987f0d2fa2a51/aspc-a_keyvisual_01.png?fm=webp)
The ASPC-A is a piezoelectric acceleration transducer with a built-in amplifier for measuring high range from slight to large acceleration in high sensitivity. Rated Capacity: ±360 to ±4000 m/s² Dimensions: 14.2 x 14.2 x 23.7 mm Voltage Sensitivity: 1.0 mV/m/s² ±10% or 10 mV/m/s² ±10% Power Supply: 21 to 24 VDC, 0.5 to 10 mA
View details in the General Catalog
