EDX-200A
Universal Recorder
Compact, high-end measuring instrument maintaining EDX-100A convenience while accommodating various measurements by selecting numerous conditioner cards. Option cards enable CAN without reducing the number of analog channels. Channels: Max. 32/unit (Max. 256)
View details in the General CatalogSeat Comfort Testing
AMA-A can be used to measure vibrational acceleration on three axes, in order to evaluate seat comfort (body vibration) in vehicles and railway cars. It has a high safe overload rating (±19613 m/s² [±2000 G]), for stable operation even under unexpected overload conditions.
Predictive Maintenance through Vibration Measurement
ASPD-A can be used to build a system to detect abnormal vibration in factory facilities, such as rotating machinery. This piezoelectric device is compact yet highly sensitive, and it can be installed in narrow spaces to detect micro-vibrations. Waterproof models are also available for use in extreme environments.

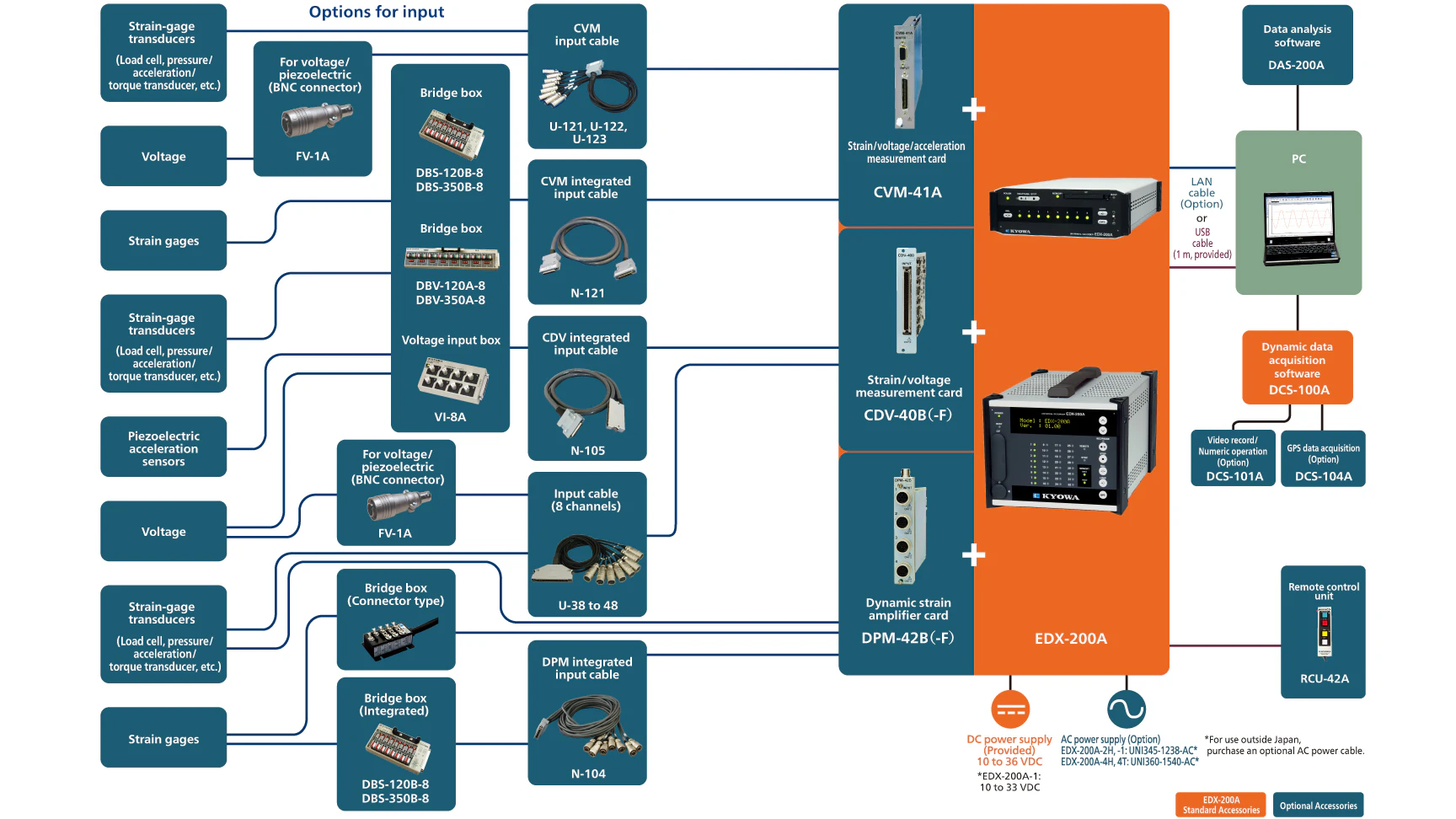

Simplified configuration of the EDX-200A
- EDX-200A-1 Max. 8 channels, 1 slot
- EDX-200A-2H Max. 16 channels, 2 slots
- EDX-200A-4H Max. 32 channels, 4 slots
- EDX-200A-4T Max. 32 channels, 4 slots, operating temperature -20 to 65ºC
EDX-200A
EDX-200A-1 Max. 8 channels, 1 slot
.png?fm=webp)
EDX-200A
EDX-200A-2H Max. 16 channels, 2 slots
.png?fm=webp)
EDX-200A
EDX-200A-4H Max. 32 channels, 4 slots
.png?fm=webp)
EDX-200A
EDX-200A-4T Max. 32 channels, 4 slots, operating temperature -20 to 65ºC
.png?fm=webp)
Manual
CAD Data
Main Compatible Accessories
Conditioner Cards for EDX Series
EDX-200A-2H/4H/4T Option Cards
Remote Control Unit
EDX-100A/200A Instantaneous stop battery unit (EDB-41B)
Dummy Panel for EDX
15-pin female D-sub to 15-pin male D-sub (N-128)
2-pin plug to 2-pin receptacle (P-38~44)
Fork-shape crimp-style terminal (M6) to bared at the tip (P-72)
4-pin receptacle to 2 conductors twisted, pre-soldering at the cable tip × 2 (P-76)
AC adapter (UNI360-1540-AC)
AC adapter (UNI345-1238-AC)
