High Temp. Compact Tension/Compression Load Cell LUXT-A
LUXT-A is a high-temperature compact tension/compression load cell that can be used in temperatures up to 195°C. It can be used in a wide range of tests and measurements conducted in high-temperature environments, such as safety performance testing for on-board batteries used in electric vehicles, and new material testing.
Compensated Temperature: Can handle temperature of 195°C
The upper temperature range has been increased compared with conventional products, which could be used in temperatures up to 150°C.

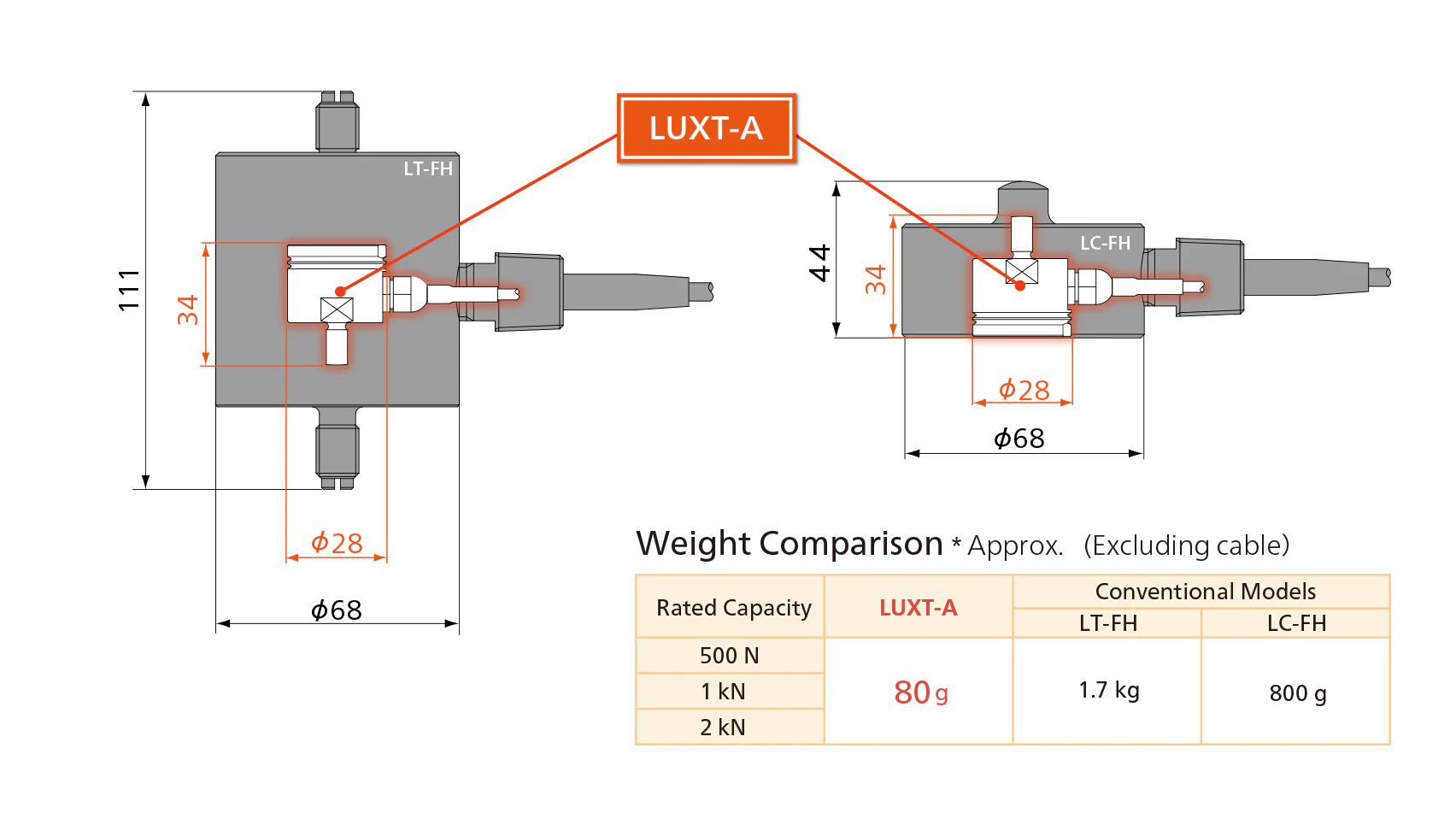

Minimum Size（φ28 × 34 mm）*
Roughly the same height as a 500 yen coin! It is the smallest tension/compression type product available. * Comparison with our products
It is at least 20% smaller in height and approximately 58% smaller in diameter than conventional products. With a weight of only approximately 80 g, it is also at least 90% lighter than conventional products. It is perfect for taking measurements in narrow or small spaces.
High-temperature Environment Testing
Battery Swelling Force Measurement
Tensile and compression Material Testing
Spring Load Measurement
