Corner Strain Gages KFGS-NE
A corner strain gage has been added to the KFGS gages lineup.
This gage features a minimized excess at the tip.

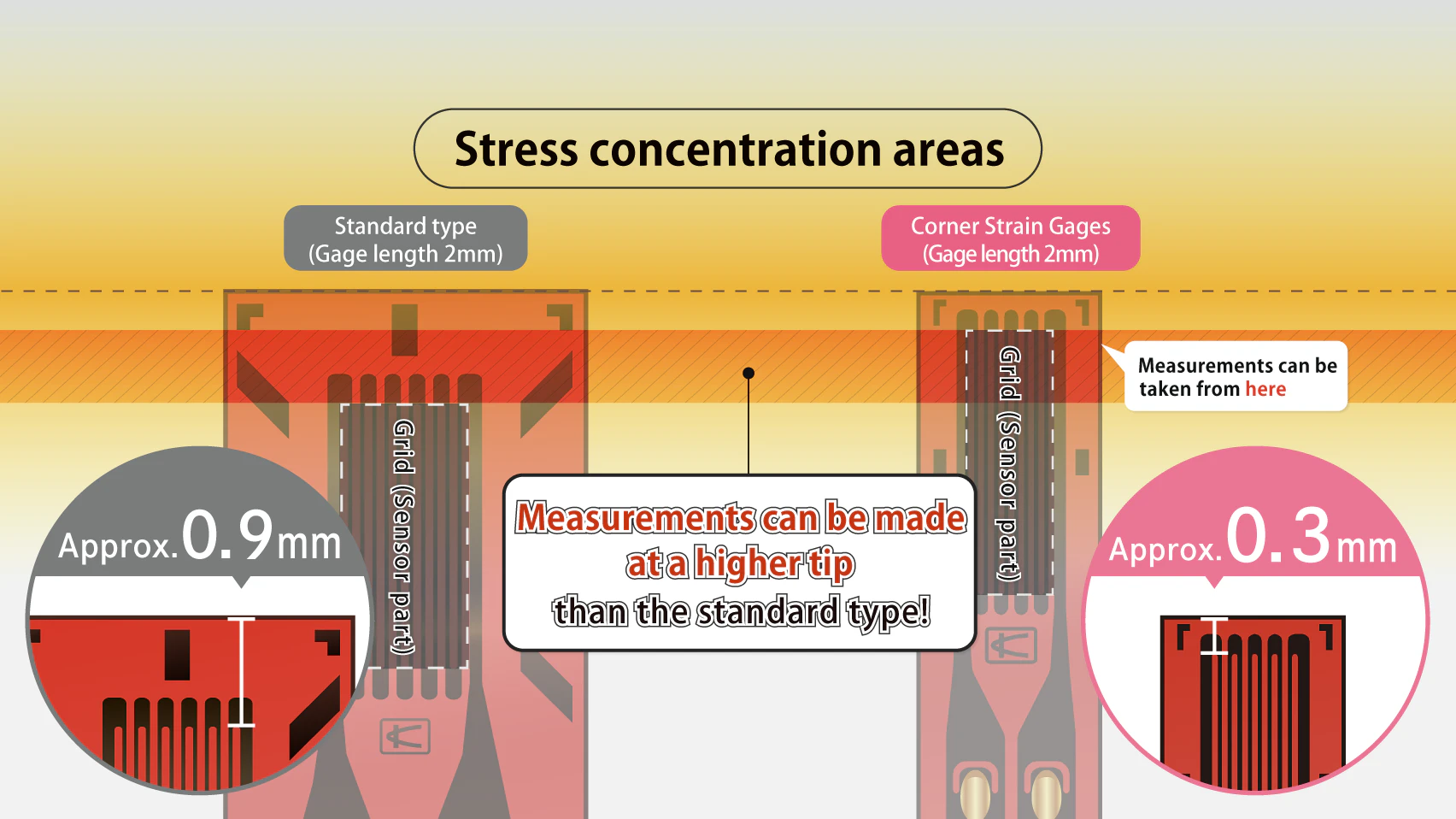

Achieve more accurate measurement results by placing the strain gage's sensor part as close as possible to the stress concentration area.
By shortening the length to the grid (sensor part) from the gage tip, strain gages can be attached to terminal parts such as corners and welded parts.
Wide variety
Based on the general-purpose KFGS strain gage, we offer three sizes: 1 mm, 2 mm, and 3 mm. These gages can measure a variety of materials. *The KFGS-NE features a narrow design compared to the standard type.
Welded part
Compared to the standard type, it is possible to place the strain gage as close as possible to the stress concentration area.

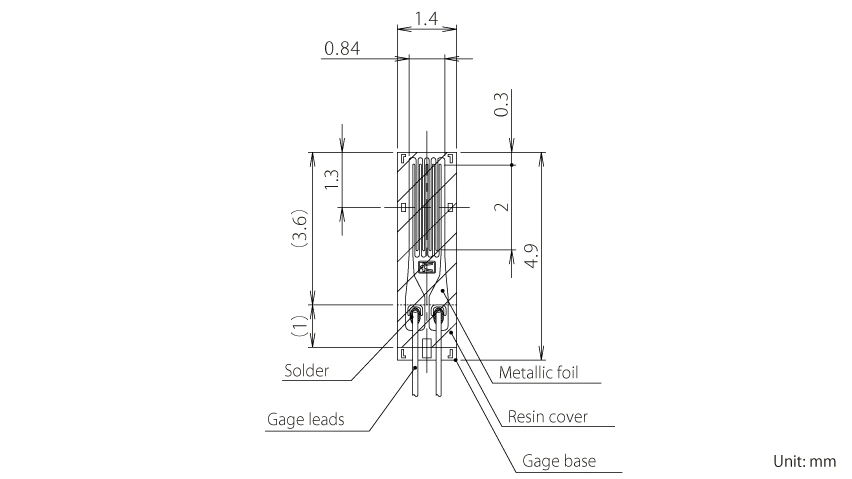

Dimensions
Corner Strain Gages (Gage length 2mm narrow)
