KYOWA's "That product is actually available."
High-Capacity Tension / Compression Load Cell LUK-S-30MN
High-Capacity Load Cell capable of measuring loads up to 30 MN (approx. 3000 tf).
This ultra-high-capacity model achieves a rating 15 times greater than our standard maximum catalog capacity of 2 MN.
Note: Maximum capacity of 30 MN applies to compression only. The maximum capacity for tension is 10 MN.

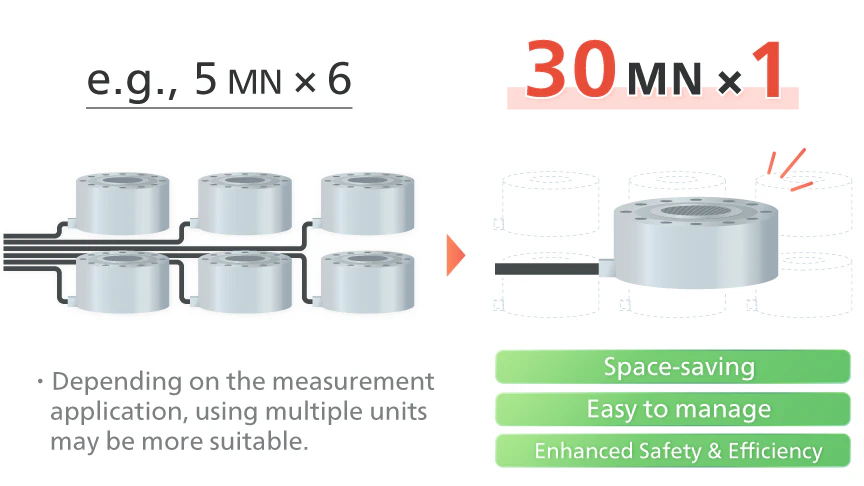

Achieves ultra-high capacity in a single unit.
Compared to multi-unit measurement systems, this single-unit design simplifies installation while improving both safety and operational efficiency. The center features a groove and threaded holes, allowing for direct mounting to jacks and other equipment.
Custom-made available
Regardless of the specifications listed above, we can provide custom-made solutions tailored to your specific application and operating environment. Please feel free to contact us for a consultation!
Contact usCompression load measurement for large-scale hydraulic equipment

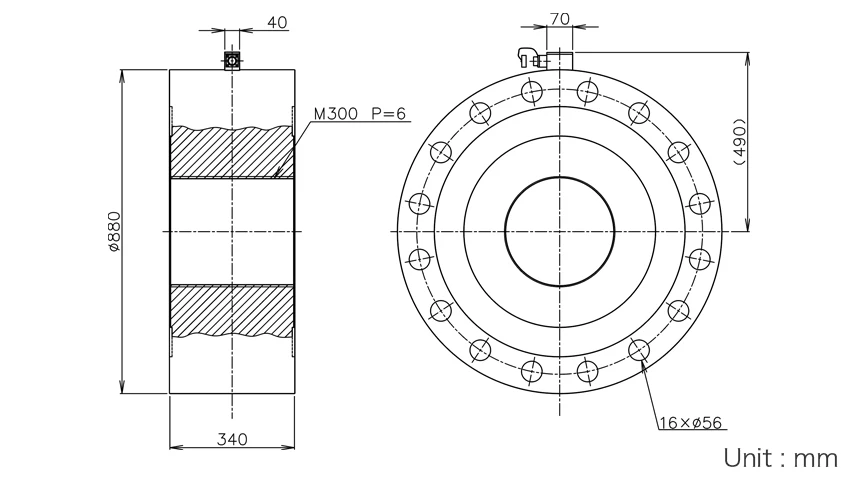

Dimensions
LUK-S-30MN
Q. Is periodic calibration available for custom-made products?
A. Available Please contact us via our website.
