EDX-10 Series
Compact Recording System
· Compact & lightweight · With stacked connection, no synchronization cable is required, therefore wiring-saving. · Max. sampling frequency 20 k Hz for 4 channels of a single measuring unit in sync. · Sensors are easily connected with one-touch input cables or input adapters.

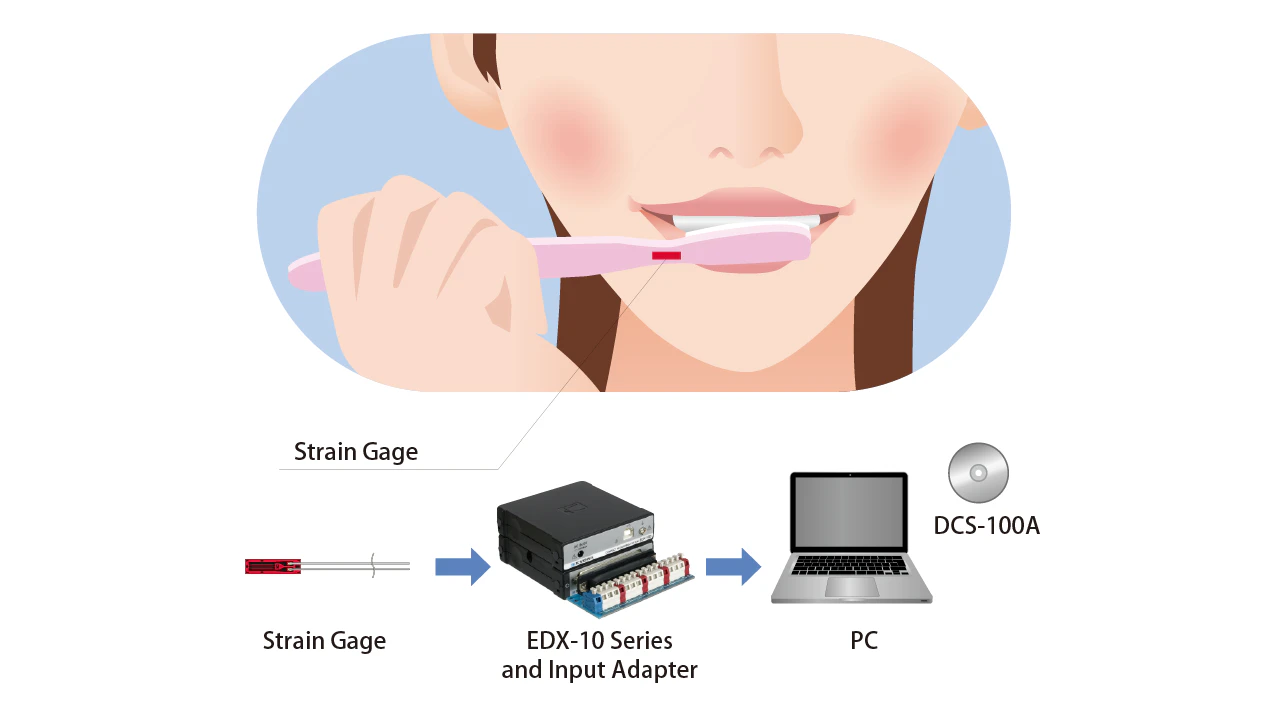

View details in the General CatalogToothbrush Stress Measurement
Strain gages can be used to measure toothbrush strain and determine toothbrush stress when brushing, in order to verify whether toothbrush quality has improved or whether a particular method of brushing is effective. EDX-10 Series devices are recommended as measuring instruments. They can be powered over USB from a PC, making it easy to take measurements even at sinks or other areas where access to power is limited.
Haptic Control of Robot Arms
LFM-A can be used to measure six component forces (force on three directions and moment around each axis) simultaneously, for use as a haptic sensor. The hollow structure makes it simple to wire to a robot arm. It is also lightweight (compared with other Kyowa products), reducing its impact on whatever is being measured.
- EDX-10B Control Unit
- EDX-11A Strain Measuring Unit
- EDX-12A Voltage Measuring Unit
- EDX-13A Thermocouple Measuring Unit
- EDX-14A Strain Measuring Unit
- EDX-15A Strain/Voltage Measuring Unit
EDX-10 Series

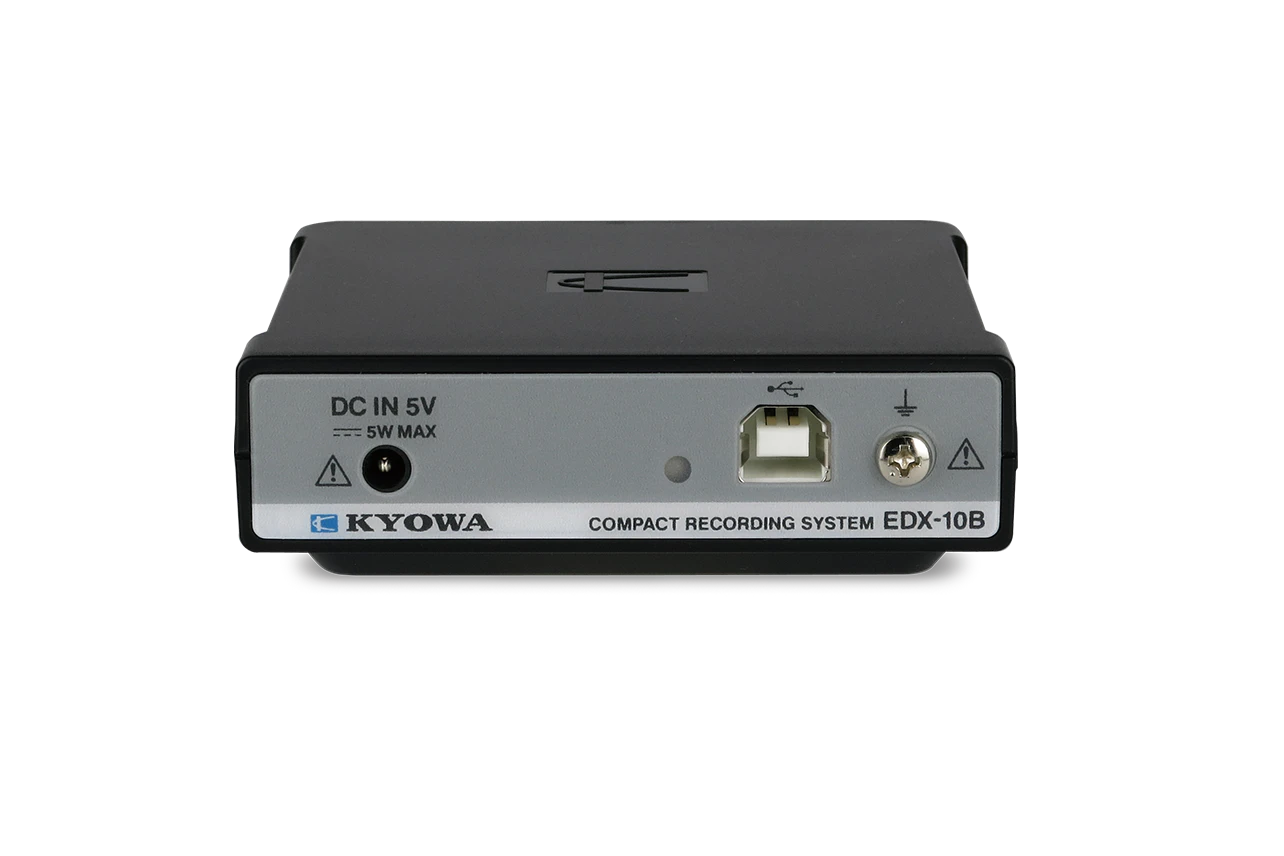

EDX-10B Control Unit
EDX-10 Series

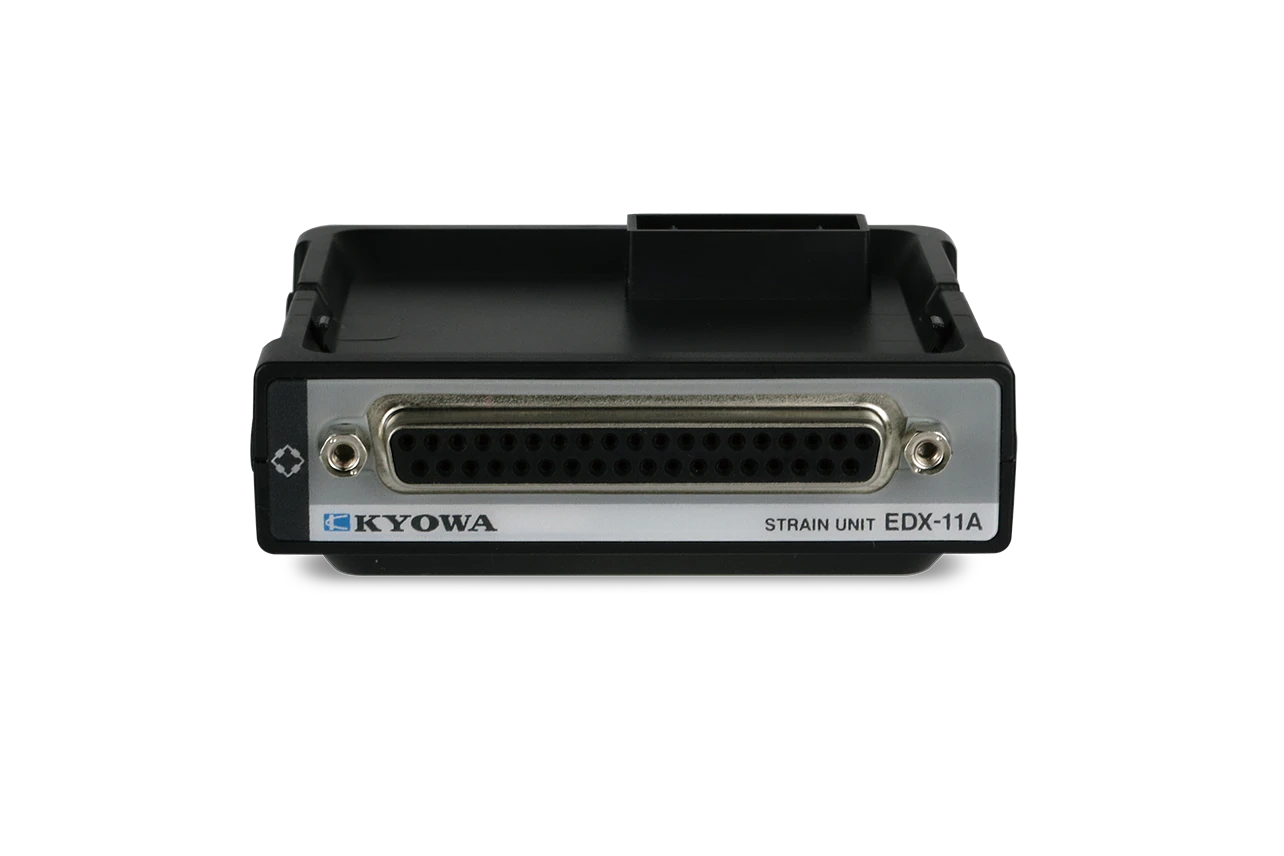

EDX-11A Strain Measuring Unit
EDX-10 Series

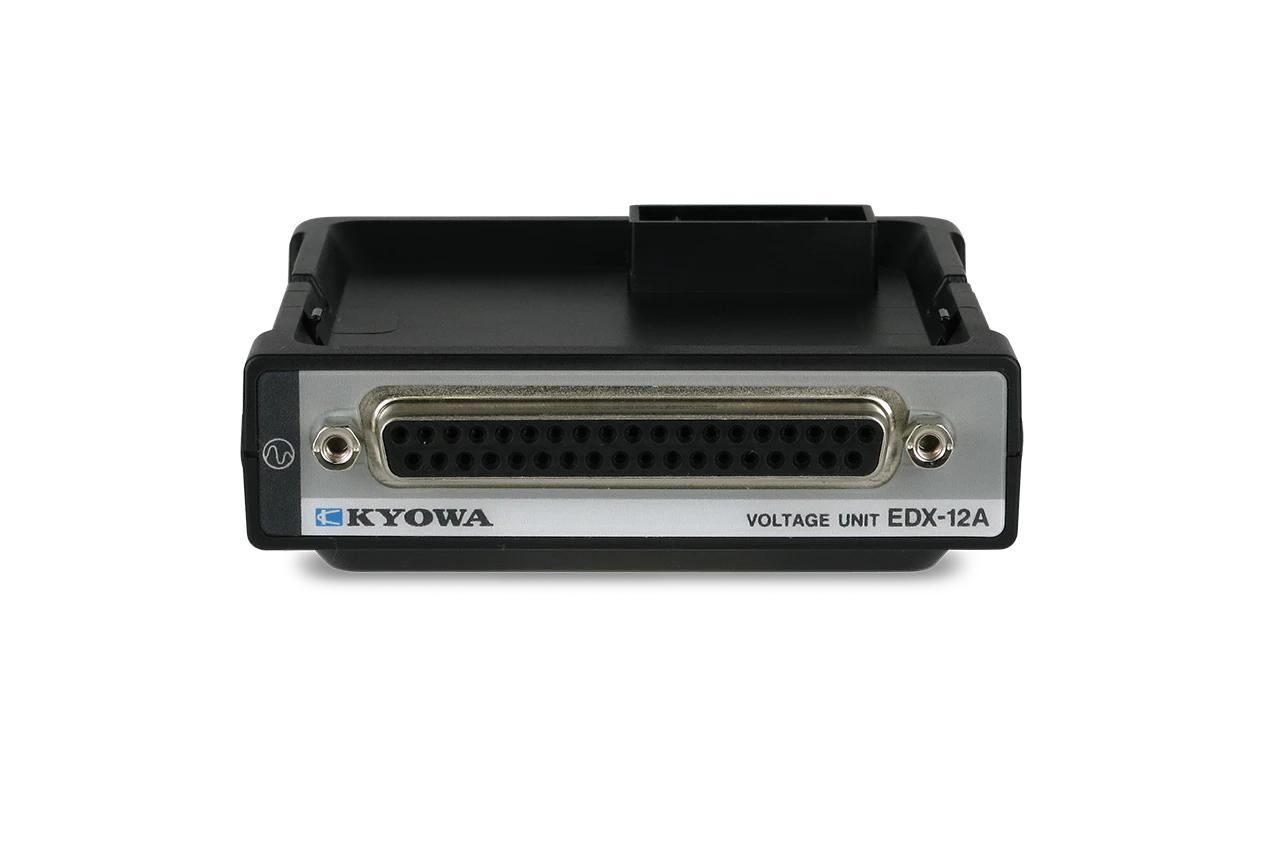

EDX-12A Voltage Measuring Unit
EDX-10 Series

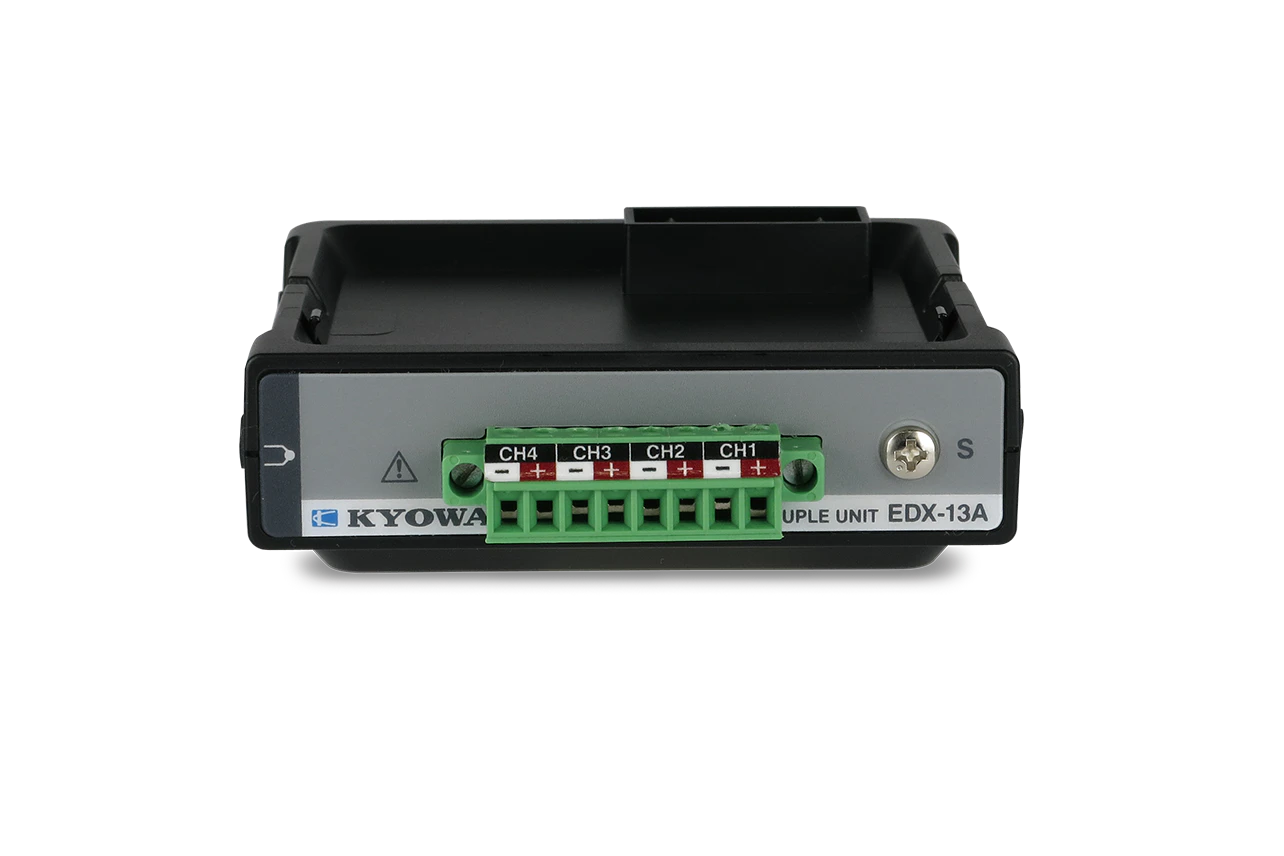

EDX-13A Thermocouple Measuring Unit
EDX-10 Series

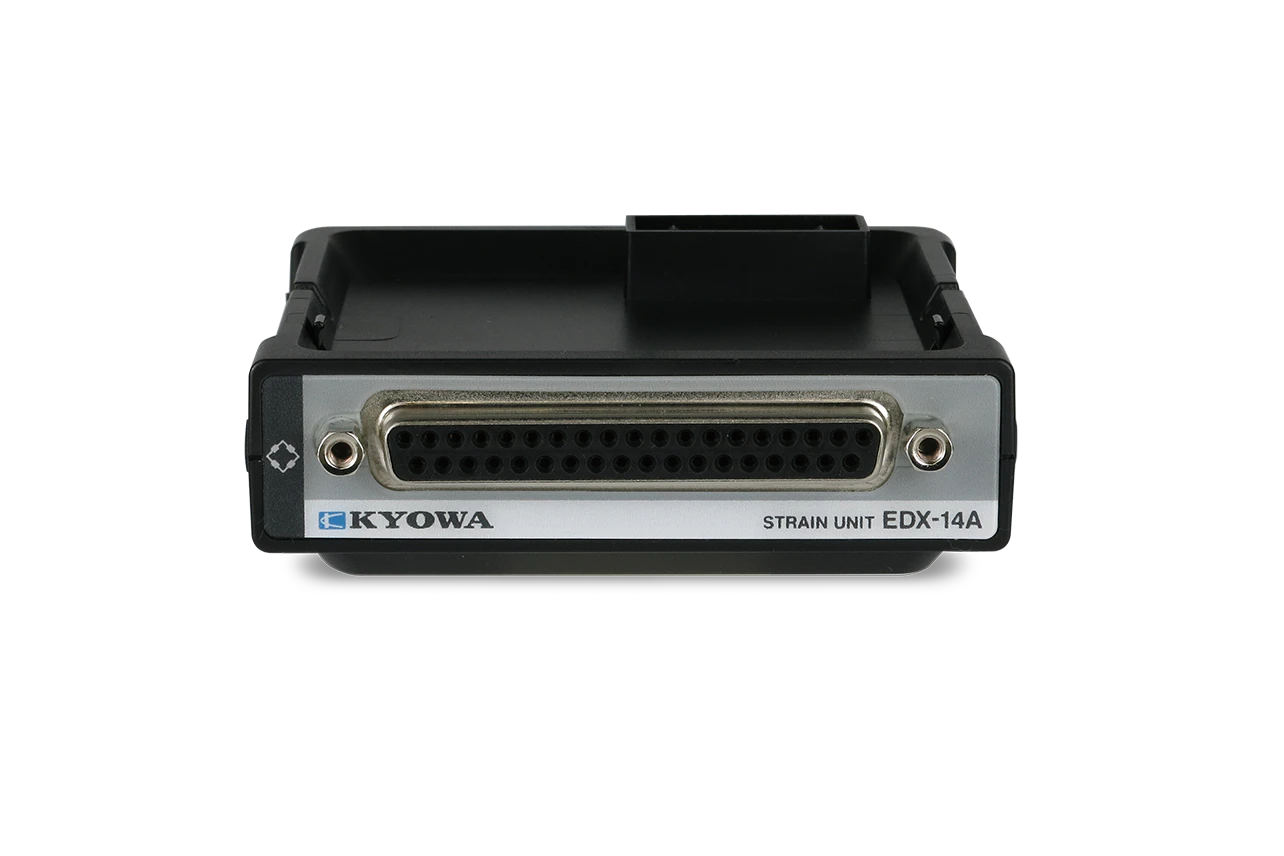

EDX-14A Strain Measuring Unit
EDX-10 Series

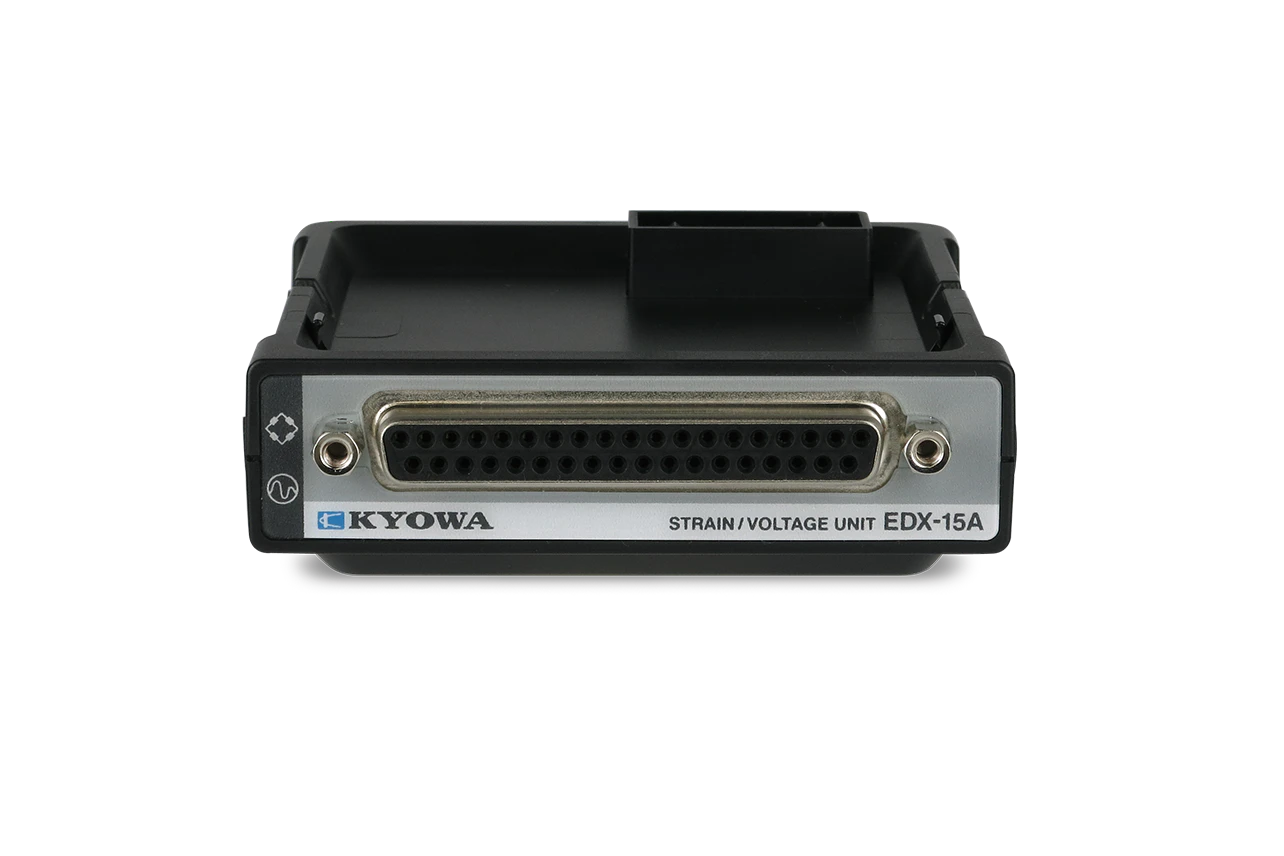

EDX-15A Strain/Voltage Measuring Unit
